LTT SUPER DUTY SHOTGUN SIGHT FAQ

What is the LTT Super Duty Shotgun Sight?

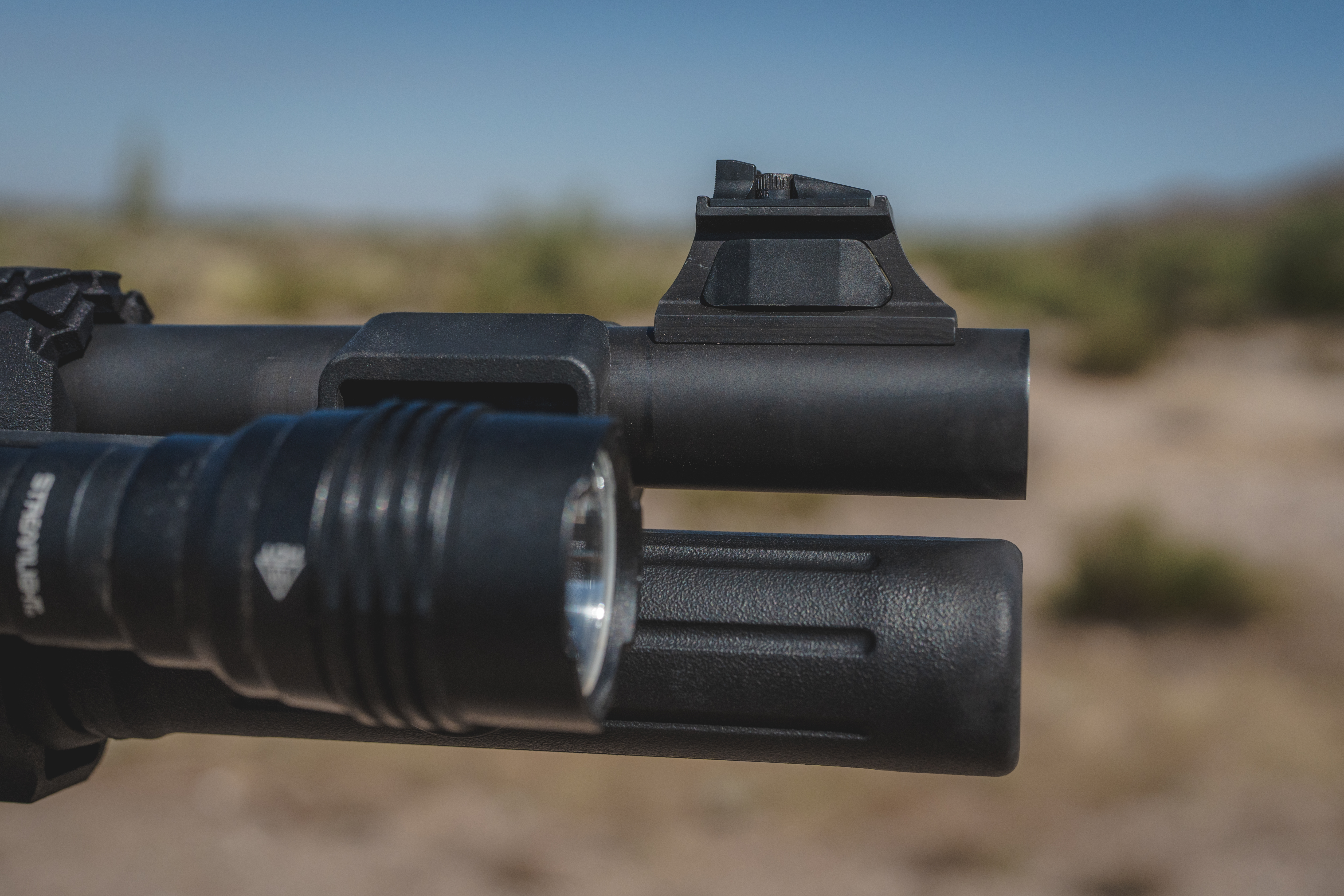

The Super Duty Shotgun Sight replaces the factory front sight and protective wings on the 1301 Tactical shotgun, offering a serrated steel post that obscures less of the target and reduces clutter in the optic window. ​

What are the features of the Super Duty Shotgun Sight?

The features of the Super Duty Shotgun Sight include:

• Replaces the factory front sight and protective wings on the 1301 Tactical shotgun. ​
• Serrated steel post design. ​
• Obscures less of the target and reduces clutter in the optic window. ​
• Wide design for easy fast shots at close distances. ​
• Notched top for a refined aiming point for slugs. ​
• Compatible with all 1301 rear sights, including the factory LPA sight, the GG&G 1301 Optics Mount, and the LTT Fastback Optic Mount. ​
• Installed weight of 0.5 oz. ​

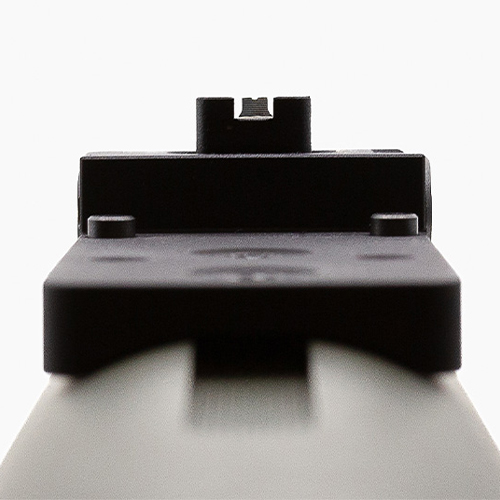

What does the sight picture of the Super Duty Shotgun Sight look like?

What is the LTT Super Duty Shotgun Sight Compatible with?

It is compatible with all 1301 rear sights, including the factory LPA sight, the GG&G 1301 Optics Mount, and the LTT Fastback Optic Mount. ​It is NOT compatible with the A300.

What is included with the LTT Super Duty Shotgun Sight?

The package includes the Super Duty Front Sight, Molded Insert, Screw, Mil-Spec Nylok Nut, and T25 Torx driver. ​

What is the Installed Weight of the LTT Super Duty Shotgun Sight?

The installed weight of the Super Duty Shotgun Sight is 0.5 oz. ​

Is the Super Duty Shotgun Sight compatible with the factory LPA sight?

Yes, the Super Duty Shotgun Sight is compatible with the factory LPA sight. ​

How do you remove the factory front sight?

To remove the factory front sight, use a thin 5.5mm wrench. ​

List the components included with the Super Duty Shotgun Sight.

The components included with the Super Duty Shotgun Sight are:

• Super Duty Front Sight ​
• Molded Insert
• Screw
• Mil-Spec Nylok Nut ​
• T25 Torx driver ​

What is the purpose of the notched top on the Super Duty Shotgun Sight?

The notched top on the Super Duty Shotgun Sight provides a refined aiming point for slugs. ​

How do you install the Super Duty Shotgun Sight?

To install the Super Duty Shotgun Sight, follow these steps:

1. Remove the factory front sight with a thin 5.5mm wrench. ​
2. Install the nut into the insert so that the domed nylok portion of the nut is visible. ​NO LOCTITE NEEDED
3. Install the insert into the front sight base. ​
4. Place the front sight onto the front sight base. ​
5. Install the screw and tighten to 25 in/lbs. ​
   • Note that the screw may leave fine thread marks inside your front sight base hole. ​ This is intentional and allows the assembly to be more robust. ​
   • Once tightened, there may be a slight gap below the insert because it is being pulled firmly up against the top of the front sight base. ​ This is normal and will not affect function. ​

What tools are needed for the installation of the Super Duty Shotgun Sight?

The tools needed for the installation of the Super Duty Shotgun Sight are:

• A thin 5.5mm wrench ​
• T25 Torx driver ​

Is there a video available for the installation?

Yes, Watch Here

Do you offer a tritium, night sight, fiber optic, etc, option for the Super Duty Shotgun Sight?

No, we only offer a blacked-out version.
